The Best (homemade) Bike Table Ever

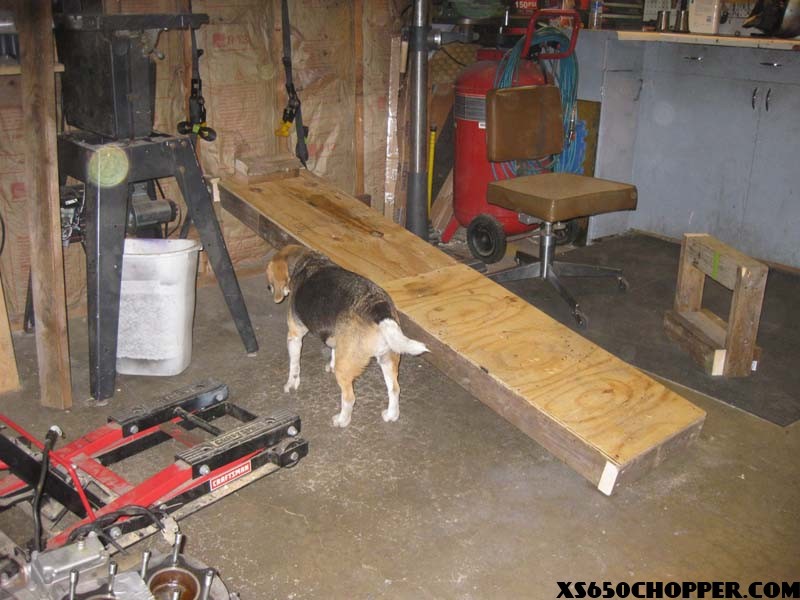

I recently built a table for my bike.  Width- 16″, Length – a foot longer than my wheelbase, Height-18”.  First I Built a 2×4 frame and covered it with plywood and put blocks on the front of the table so the bike wouldn’t roll forward.

noid-3

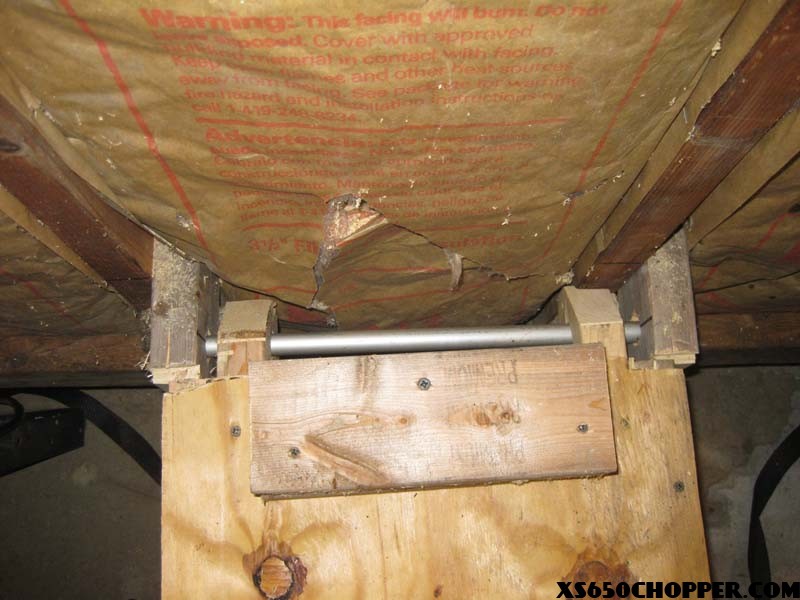

Then I drilled holes in the frame for a pipe to go through so the table could rotate up against the wall and out of the way when not in use.  To mount it I cut two 2X4s to stick out from the studs for the pipe to go through. I put the pipe through the 2x4s and then through the table.

noid-2

Then mounted two eye-bolts on both sides of the table for tie downs.  Then I built a block for the other end of the table the same height as the bottom of the table in the pipe. Done!

noid-1

noid-0

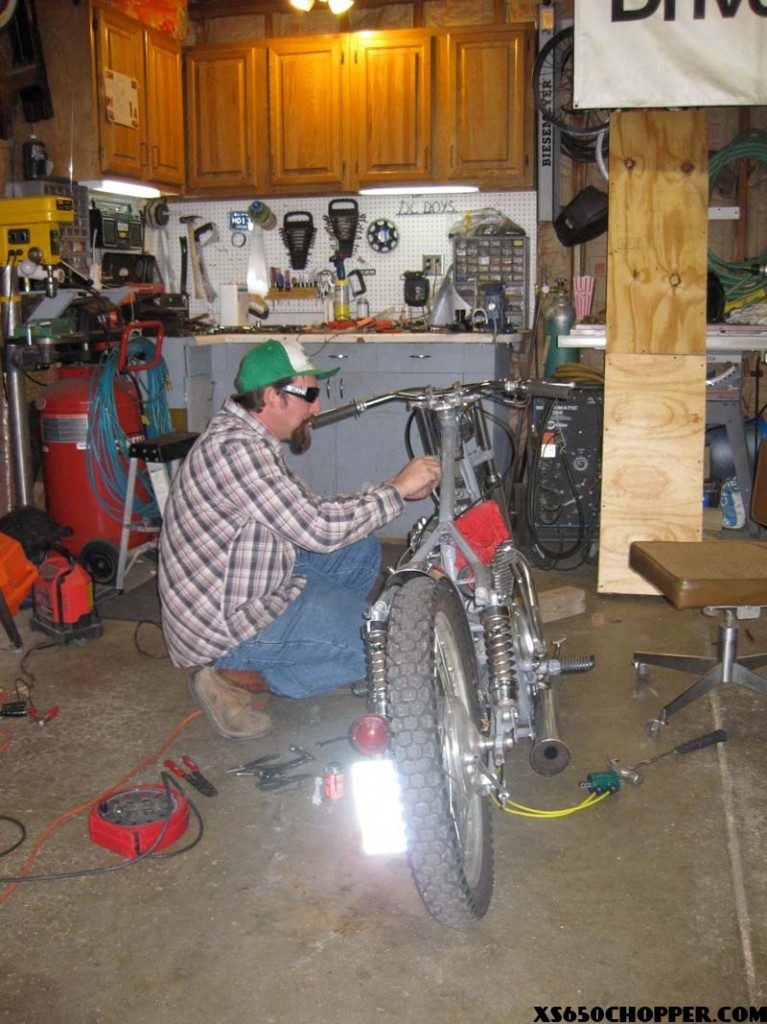

Rolled the bike on the table, hooked up the tie downs, and started jacking up the table. Made sure to ratchet the tie downs for each step up with the jack.  Once at the right height, placed the block under the end and worked away! Strong enough to kick my bike on!

Justin
