Chopping down a sportie tank making it a little cooler

1 Chopping down a sportie tank making it a little cooler

Frisco style gas tank

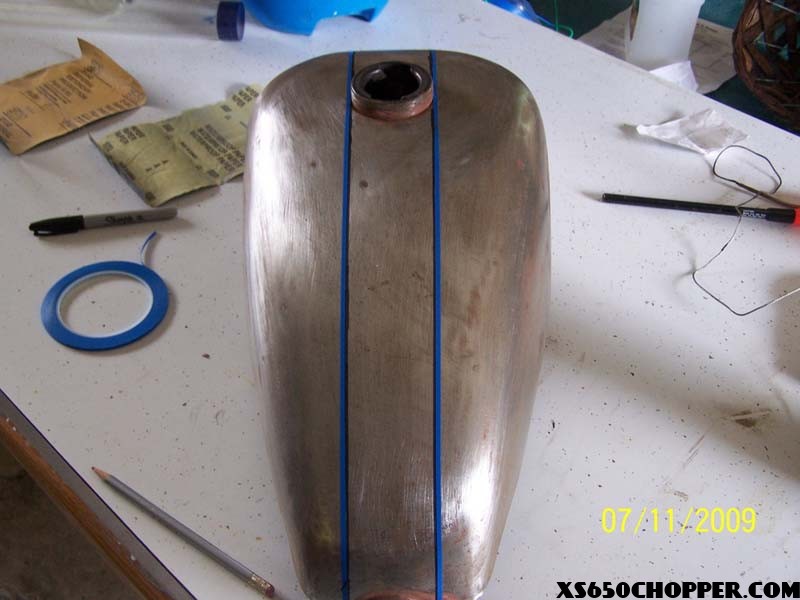

Here is where I started. I ran 3m blue fineline tape along the tank folowing the tunnel. I then ran a sharpie along the tape to get a straight line.

sportie tank1 Chopping down a sportie tank making it a little cooler

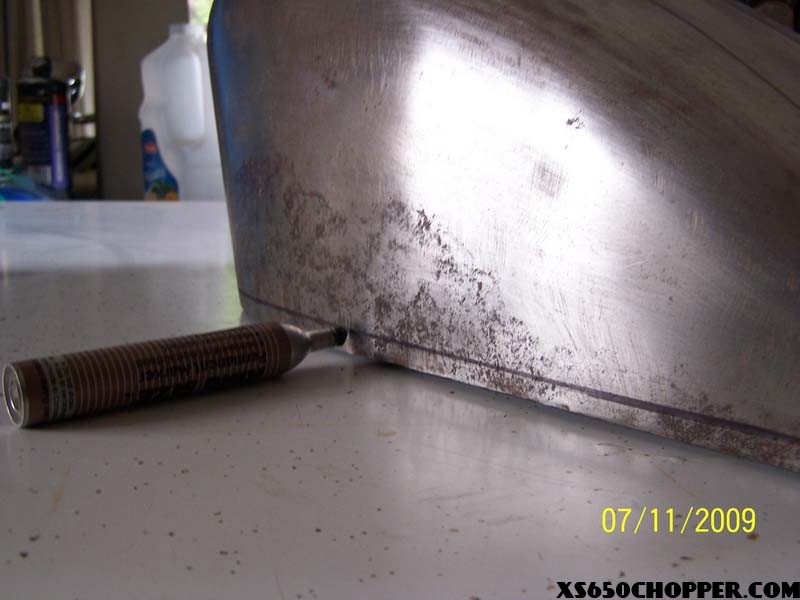

I cut the brackets and petcock area off the bottom of the tank so the tank would set flush on the table. This way you can run a sharpie along the table and get a straight cutting line.

sportie tank2 Chopping down a sportie tank making it a little cooler

First I cut the bottom of the tank and then cut the top line of the tank.

sportie tank3 Chopping down a sportie tank making it a little cooler

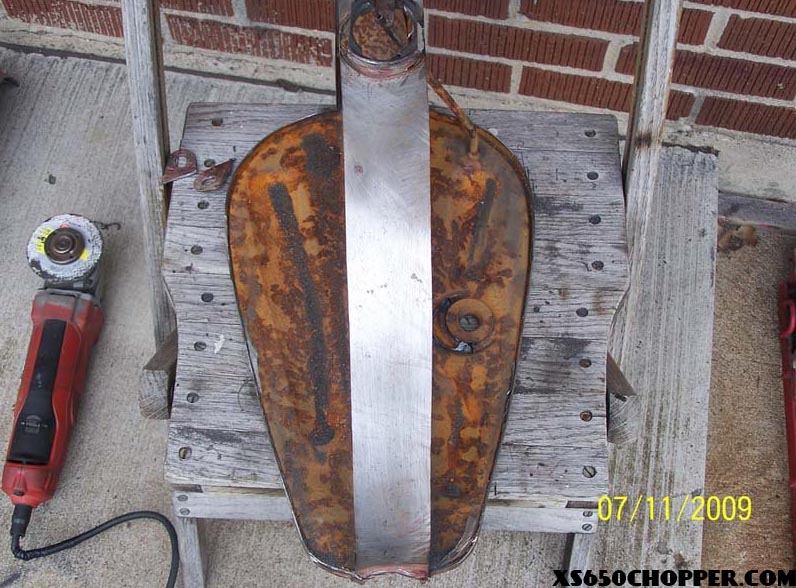

WOW! what a rusted piece of crap. LOL. This is what is left after the cuts.

sportie tank4 Chopping down a sportie tank making it a little cooler

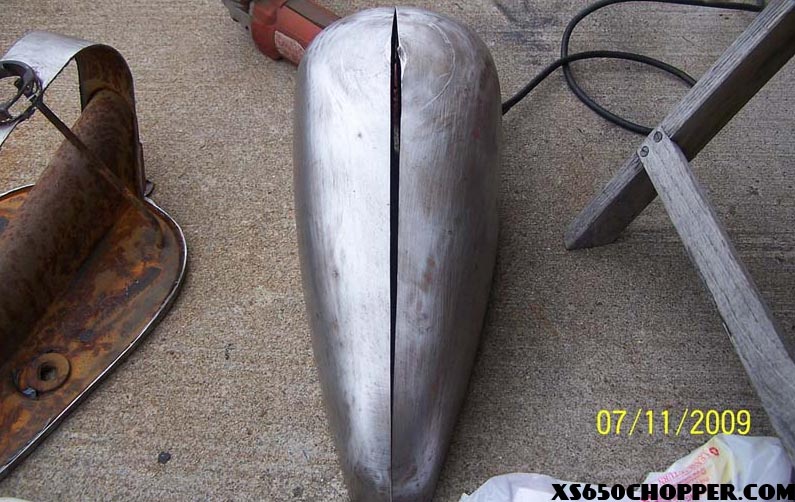

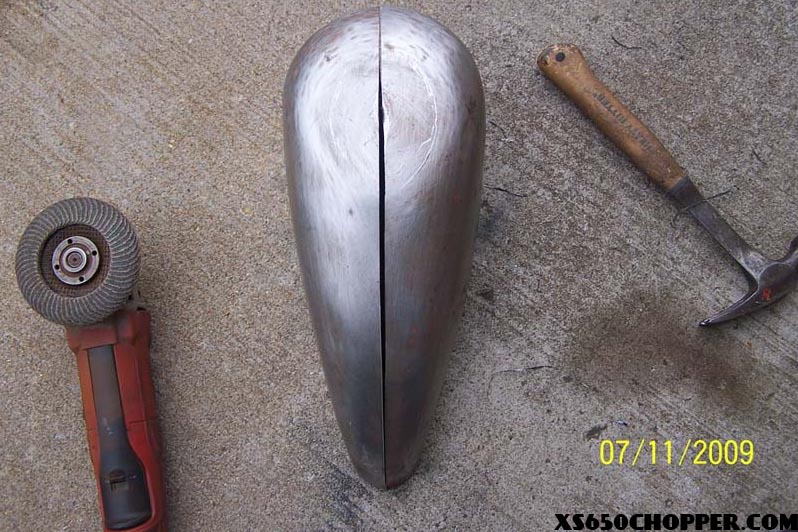

Here you can see how it does not quite line up. You can also see the flat top area on the tank.

sportie tank5 Chopping down a sportie tank making it a little cooler

Here you can see both side are beat out and matching up pretty close. There is still a gap between the 2 halves. This is a little trickey and takes a little time to start sanding each side to get it to match up.

sportie tank6 Chopping down a sportie tank making it a little cooler

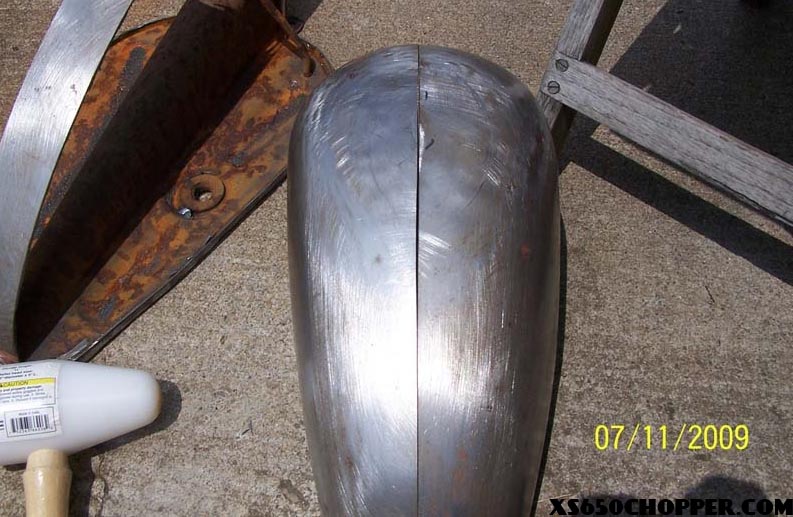

Here you can see after about an hour of finetunning she matches up pretty good. I can weld but will leave putting it together to my master welder buddy!

Joel Mekolites

Tunneling a gas tank

Subscribe - Never miss a bike!

Get the latest posts delivered via Email:

Brat-ad
hinge
xscharge

4 Responses to Chopping down a sportie tank making it a little cooler

  1. Ted December 27, 2009 at 10:24 pm #

    Great write up Joel. Thanks. Your bike turned out sick man. Your tank is what made me question if I want to run my Alien gas tank or go with a Frisco style tank. Probably welding the thing together is the trickiest part. You have to stitch welded and then go back over it making sure not to warp or burned through.

    There is a another good write up on narrowing a tank here http://www.lowbrowcustoms.com/index.asp?PageAction=Custom&ID=26

  2. Joel Mekolites December 28, 2009 at 5:47 am #

    My buddy bought an alien tank and I hated it looked like an egg. Man lowbrow’s right up is awesome!

  3. Blackwidow January 1, 2010 at 3:55 am #

    Nice way to get a regular tank and change it up a bit

  4. mike July 10, 2011 at 3:30 am #

    wow man where did you find the doner tank? looks like from all the rust it was a boat anchor…i’ve never been nable to weld rusty metal very well. it wants to flare out and make nasty little holes good luck bro nice idea
