Hater Cycles model Kombat

xs650 noid IMG 20111203 153451 587x396 Hater Cycles model Kombat

XS1/2 build

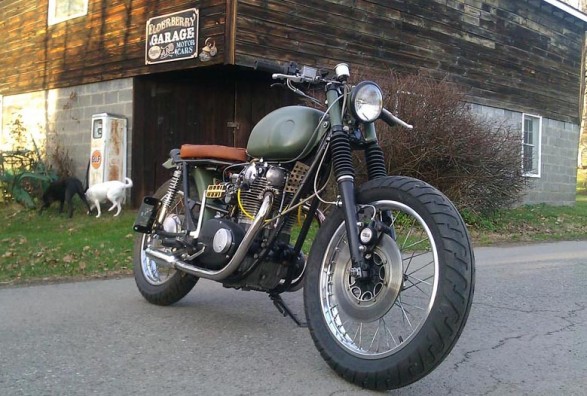

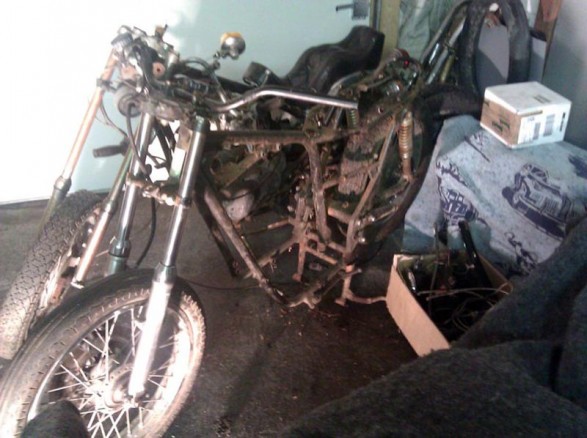

Jason – Almost finished with a little XS1/2 build, just a few finishing touches to go. The build started with a seized barn find XS2 and an unfinished XS1 chopped up horribly and unfinished (frame and motor only).  Pulled the XS2 engine out for boring and started on the frame and tin.  My plan was to build a unique bike that’s design was more of a late 40′s-50′s look than 60′s-70′s, and ultimately a bike that well, looked old and a bit rough around the edges.

xs650 noid IMG 20111203 153338 587x438 Hater Cycles model Kombat

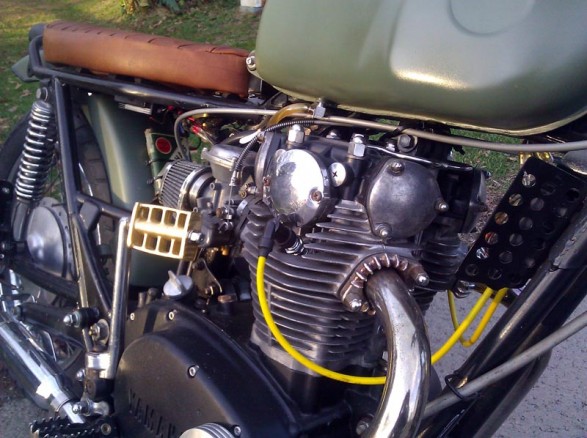

Tail loop was cut back as was the rear fender.  I decided on a using a Hodaka Ace tank and fabbed up some top motor mounts as well as a front “shielded” coil mount.  The seat pan and skin is homemade as well, with sewn 3.5oz hide (thank you home ec class)

The chopper engine was originally planned as a parts donor motor.  But it’s funny how just being bored and toying around with getting spark lead to it being a very strong running engine, and ultimately being used.  Threw some carbs and pipes on and it was good to go.

xs650 noid IMG 20111203 153406 587x702 Hater Cycles model Kombat

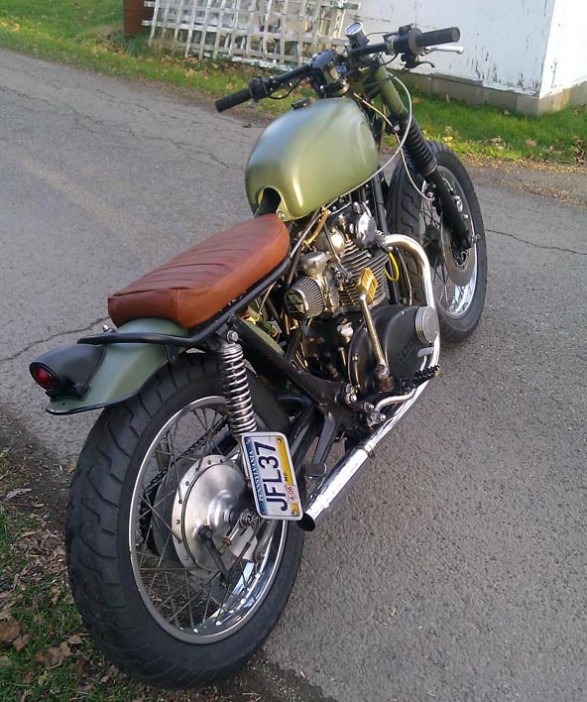

As for electrics, I built a rectifier from radio shack components and mounted it with a sizable heat sink underneath the seat.  Trimmed the taillight housing and an old HD headlight. The battery is actually in plain view, in a way…I’m using a micro sized battery hidden in an antique tobacco tin mounted to the rear fender.  Luckily it’s a one kick bike.

xs650 noid IMG 20111203 153244 587x358 Hater Cycles model Kombat

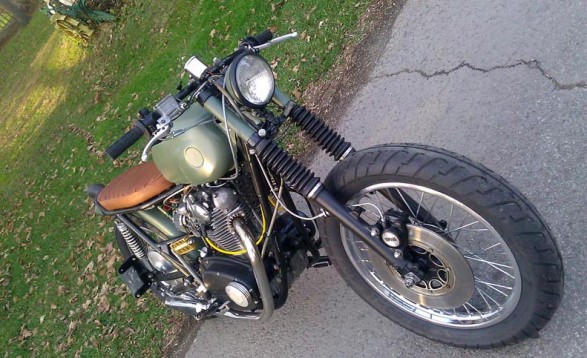

There’s a few more touches to be done, leather straps for the “battery case”, Master cylinder work, emblems for the tank, and a few more brass accents here and there, but overall I’d say it’s about 97% done.

xs650 noid 10150119682423676 587x438 Hater Cycles model Kombat
Unfortunately the next project (Board Track XS) has taken most of my attention lately.  But I’m sure I’ll get a little bug to finish it up completely soon enough.

Jason Audette

Subscribe - Never miss a bike!

Get the latest posts delivered via Email:

zombie
hinge
xscharge

4 Responses to Hater Cycles model Kombat

  1. Bykerbrad December 30, 2011 at 8:18 am #

    Very clean build! Where in PA are you? I’m in the burbs of Pgh.

  2. Sgt Hollywood December 31, 2011 at 12:32 pm #

    Hah that’s old “donor” plate for up and around the block test rides. But a lot of the building has been done in the Delaware Water Gap, NE PA.

  3. tvogt January 1, 2012 at 12:47 pm #

    Yamadoka! Tasteful.

  4. Matt March 13, 2013 at 9:45 pm #

    What did you use for petcocks on that tank? I have the same tank and i was thinking about tapping ID threads into the bungs which is what it looks like you did. Any help would be appreciated. Another thing, did you put your Pamco up front because of tank clearance issues on the regular mounting spot? I am doing a brat style bike and I really like how yours came out. Good work!
