eds xs650 “angela”

a2012 noid 1 600x396 eds xs650 angela

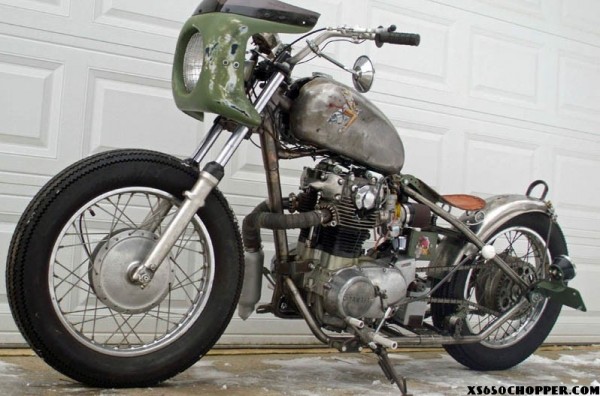

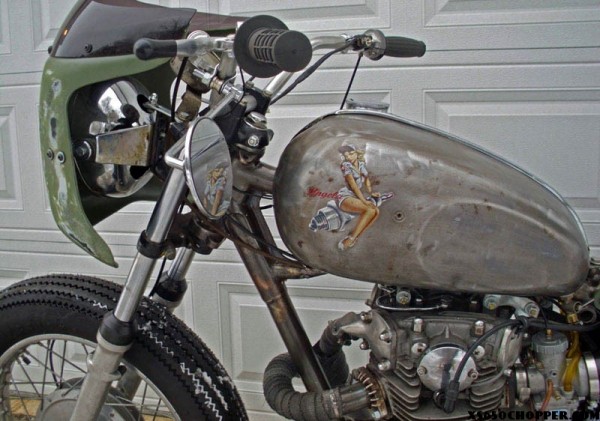

Ed - This is my XS650 which I named Angela.  The motor is a swap meet find and most of everything else came from spare parts. The neck and backbone are from a Triumph and the rest of the frame was fabricated with a TC Brothers 6″ stretch hardtail.

a2012 noid 2 600x421 eds xs650 angela

a2012 noid 3 600x345 eds xs650 angela

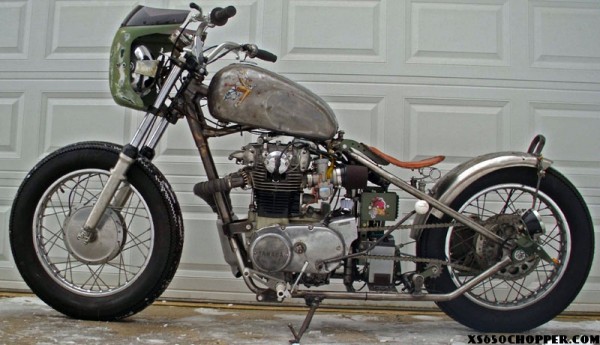

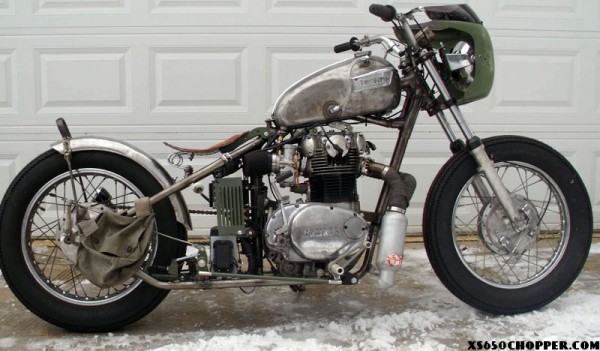

Forks are from a Jap bike, so fitting the  steering head bearings were a challenge. It is a hand-shift with both a foot clutch and hand clutch for riding in traffic. The muffler is the smallest Cherry Bomb glass-pack I could find.

a2012 noid R1 600x351 eds xs650 angela

It sounds pretty good.  I am now waiting for some nice weather to give her the shake-down run.

Thanks for looking!

Ed janecek

Subscribe - Never miss a bike!

Get the latest posts delivered via Email:

xscharge
Hugh-Ad-2
zombie
Brat-ad

22 Responses to eds xs650 “angela”

  1. Tebo January 23, 2013 at 8:20 pm #

    Franken-Bob! The doll on the tank says it all. She’s a BOMBER! Ride ‘er ’til the neighbors show up with torches and pitch-forks!

  2. vINCESTAGECHOPPER January 24, 2013 at 3:59 am #

    …god bless you …you’re family …and Angela…
    Congratulation for the work…from France
    ;-)

  3. Grumpy January 24, 2013 at 5:18 am #

    Get rid of that Crappy looking makeshift Fairing light surround whatever you want to call it! Spoils a good looking bike! (My opinion only of course)

  4. tucker1 January 24, 2013 at 7:17 am #

    holy shit. please loose that horrible front fairing. bike will look tons better!

  5. John Murrill January 24, 2013 at 8:47 am #

    I want to know more about the hand shift, foot /hand clutch set up your running. Pix? explanation, description, parts needed. This sounds like my dream setup.
    Thanks, John M

    • ed January 24, 2013 at 9:18 pm #

      thanks for the input. the hand clutch is stock, no modifications. for the foot clutch i removed the chrome dust cover from the left case cover and extended the cam that pushes on the clutch rod. a tube is welded to the end of the clutch rod pusher and a threaded rod goes thru the tube, thru the pusher and bears on the ball bearing that contacts the clutch push rod. a nut on the outboard side of the tube (see foto) locks the threaded rod. this is where you adjust the clutch. i’m probably making this sound more complicated than it is. all you are doing is extending the component that the clutch cable pulls on so you can attach your foot clutch linkage to it. the part that connects the welded tube to the linkage is fabricated from 1/2″ square steel stock. the linkage to the foot lever has pivots in the threaded ends and is from the hardware store. i don’t see a way to attach fotos to this so send me your email and i will send you pictures ed.janecek@att.net

  6. mayute January 24, 2013 at 9:56 am #

    Ed,if you will remove that faring it will looks more better ..that fairing is for cafe racer style…nice job.

  7. dex82 January 24, 2013 at 3:52 pm #

    i agree……….great looking effort except for the tumor surrounding the headlight. great seat, good lines, lots of nice details, love her nekkidness, but the fairing really doesn’t do anything for the bike

  8. PlugHead January 24, 2013 at 4:14 pm #

    Don’t lose the fairing if you like it. While it is not my style it sets it apart from a lot of other XSes. I kinda dig it nice job.

  9. Tebo January 24, 2013 at 6:00 pm #

    Hmmm, maybe if the fairing was painted to look more like the tank and the rest of the bike, it would have that kinda of “Iron Man” prototype look to it. Right now, though, it looks like a Mad Max bike…

  10. Topspeed674 January 24, 2013 at 6:57 pm #

    Very cool. Like most of the others I’m not a fan of the fairing.
    Save it for a Cafe Racer project though!
    I also fabbed a foot clutch and jockey shifter on “Ofelia”. My own very similar XS650 Bobber. It’s easy to ride and get lots of thumbs up. I hardly ever miss the hand clutch. I have my other bike for that.

  11. Fatbob January 24, 2013 at 7:29 pm #

    Do whatever the hell you want. It is, after all, YOUR BIKE! Only one’s gotta’ like it is you. Screw everyone else. That’s what this whole show is all about! s!Love the fuel gage, but hate the Triumph badge, not that it matter

  12. El Gaucho January 24, 2013 at 10:07 pm #

    I’ll 20th the bit about the fairing. Still a great bike though. I’d cruise it.

  13. Johnny Williamson January 24, 2013 at 11:01 pm #

    The fairing can work and look good. It should surround the front end as fairings are design to do. The bottom straight cutout pictured in the second image is meant be back at the lower fork clamp. To do this a smaller headlight/housing (3 1/2”- 4 1/2” with a fairing filler ring) or have the fairing incorporate the headlight to allow a tighter fit. It may be possible with the existing headlight/housing with new shorter mounts. Handlebars might need changing. Because I can and have the tools I would fabricate a fairing out of aluminum that mimics the shapes of the gas tank. The front of the knee pad flats would dictate the side cutouts of the fairing. If your happy with the placement consider side cutout fillers to fill the gap. Eric Buell designed the Harley Road Glide fairing and it is proportionally similar for being set forward.

  14. Jeroen January 25, 2013 at 1:43 am #

    Men,

    I like the fairing.
    People on this website have seen to many without it.
    To me it looks pretty rough and different.
    You can always take it of later.

    Great looking bike!

    Jeroen

  15. R J from the ole school January 25, 2013 at 6:11 pm #

    like it,,,add a twin gun turrent to the rear,,,,paint a line of trophy flags on the side ,,,,park it at local gun shows,,,,some people just dont recognise ART when they see it,,,,nice ride

  16. Brendan_mp January 29, 2013 at 12:59 pm #

    Dude,

    Very cool. Like the fairing. Like the tank. Like the distressed paint. Like it all. Too bad the fairing isn’t a little longer on the sides you could have put the Teeth on it like those old WWII fighter planes. Now all you need are some googles and a scarf. http://www.usmilitariaforum.com/forums/index.php?/topic/62995-some-of-my-wwii-naval-aviator-flight-helmets/

  17. DENNI$ February 2, 2013 at 10:13 am #

    EVERYONE!!! GET YER GOOGLES!!! GET YER GOOGLES TODAY!!! *jk*

  18. CruzBoos February 14, 2013 at 7:09 am #

    She ain’t a Curtiss P40, but she may be close. Maybe a recycled Mitchell B25. Anyway the boys from the Flying Tigers surely could of used her on their time off and abused her on the ground just as they did with their mounts in the air. I know I would knee drag her recklessly around a dusty road.

  19. Rexxis February 18, 2013 at 11:35 am #

    KEEP THE FAIRING. It makes the bike stand apart from most other bikes on the site that end up all looking the same.
