Elswick Cycles 650 Build

noid-0051

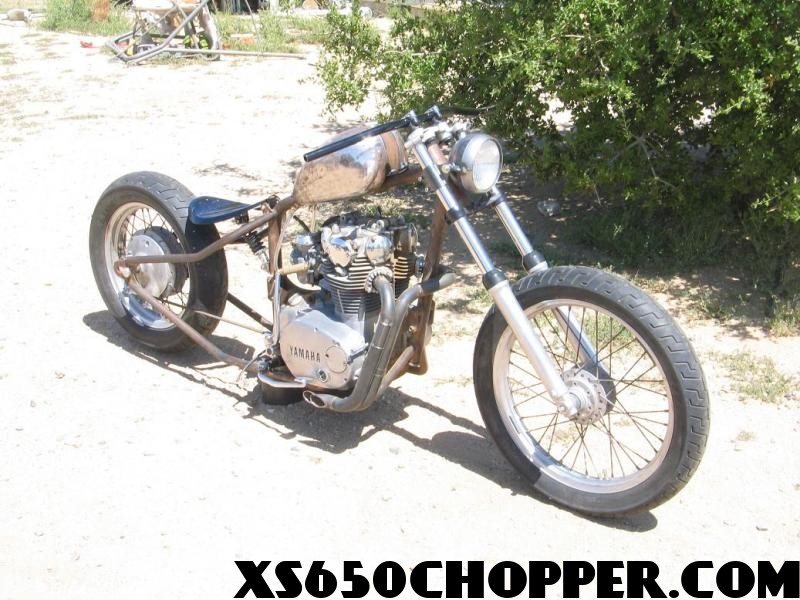

I got this bike about 10 months ago off craigslist in orange county for $200. I wanted something cheap but with potential, after my brother started his company Elswick Cycles at the beginning of 08 I was itching to start my own project bike. So now I’m at the point you see in the pictures.

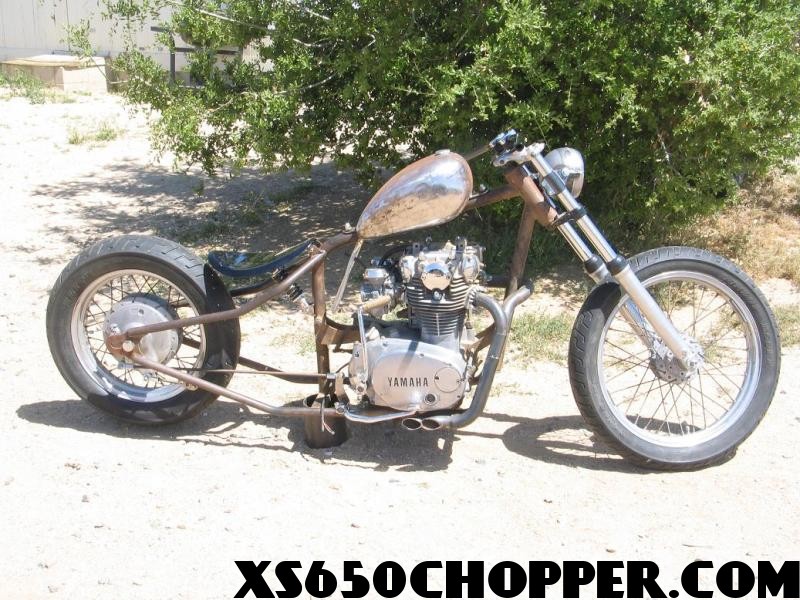

Frame: custom built by my brother and I at Elswick Cycles 35degree rake, hourglassed neck, 4″ stretched ass end, .250 wall d.o.m. tubing for the backbone/center post, all other tubing is .156 d.o.m.; basicly I wanted a bulletproof frame and that’s all that comes out of my brothers shop. The frame is 10 pounds lighter than factory also.
Tank: I got the tank while working for some of my clients in my hometown of Wrightwood, Ca.

noid-004

There was a burned down house and all kinds of junk laying around. I just happened to spot the tank through all the other shit. It’s a british wassel tank, with a cheap fuel gauge Elswick Cycles oil tank cap, and raised tunnel.

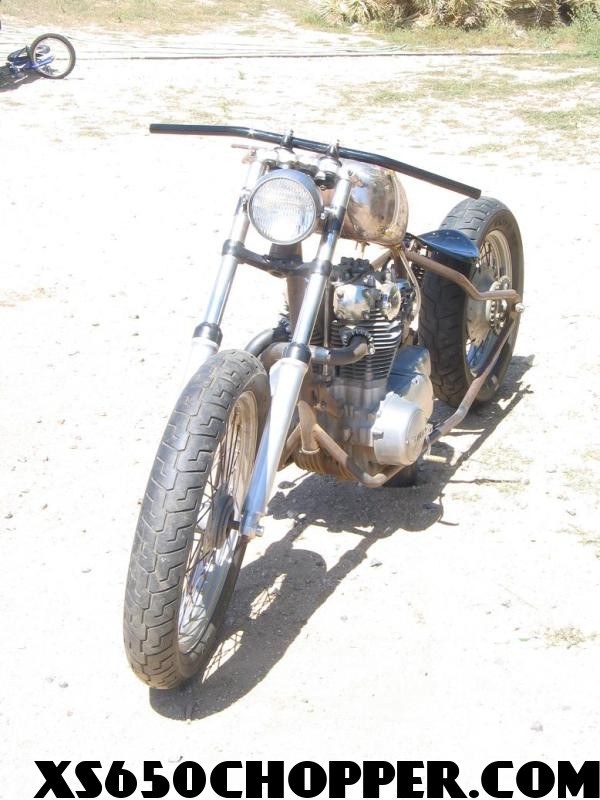

Headlight: custom Elswick Cycles built by my brother and I (not for sale on his sight yet, but coming soon)
Seat pan: Hand rolled, drilled for leather pad, shock mounted to cushion my ass a little
Everything else is custom built, hope to have this done by Spring of 2010.

noid-006

www.elswickcycles.com

Thanks Jamie Elswick

Comments

  1. stewart says:

    It’s looking good, keep us posted on the build. ride free.

  2. blackwidow says:

    Nice chop

  3. Brian says:

    where do I get a set of those pipes?

  4. Jamie says:

    Brian said:

    where do I get a set of those pipes?

    Brian, I made these one off for my bike, but you can either email my brother or I about them and we could probably get you a set. Shoot me an email at sativaguy45@yahoo.com if you’re interested.

  5. Trever says:

    Hey great build so far, cant wait for it to be finished. Do you have a shop to visit or do you work just through the net? Im in victorville and will be starting an xs project soon….

  6. i am an elswick in the us and wannt an ekswick bike. is this possible?

  7. norm younger says:

    Any updated pics?

  8. norm younger says:

    Great bike and pipes
