Write about your XS650.: A mechanic friend ended up with a coupla xs’s and before i knew it one came home with me along with several boxes of parts a nd some motors, all of which turned out to be junk for the most part so he being the builder type offered me his all together and running 76 model engine, so i was off to the races.

New Imagejju (Medium)

xsddd (Medium)

e

TC Bros tail, plain jane rollers seat,250 nighthawk headlight,x- endurance bike led tail/ brake light,VTR 250 clip-on/bars,CR 85 throttle ,fenders startd off as one piece from a early 70’s endure rear of unknown origin. it’s stainless so i guess from a Kawi…. brakes- front is a 65mm 4 pot Brembo with a homemade hanger bracket, with KX65 steel hose rear caliper – 929 Honda with CR 125 front hose and a Venture Rovale proportional valve to link the brakes.

New Imagehhhn (Medium)

I cut the stock hanger bracket down on both and had to do some shaving for clearance. so far i’ve done all the fab work and welding myself but i have to get a tig guy to weld the two rear brake hangers together.stock motor cept the Dyna coils and the next step is to incorporate a late model gsxr charging system. it is total loss at the moment. i see no reason to go to the trouble of wiring in the original system only to take it out again.

New Imagennnnh (Medium) (Medium)

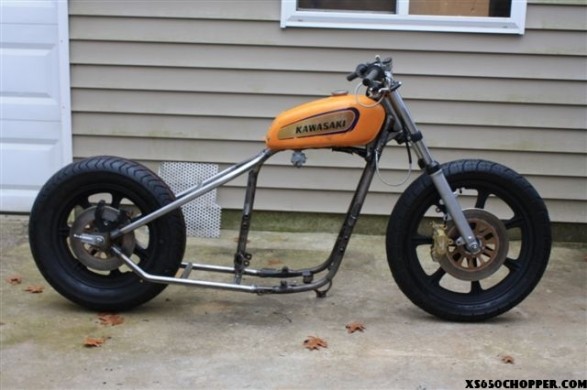

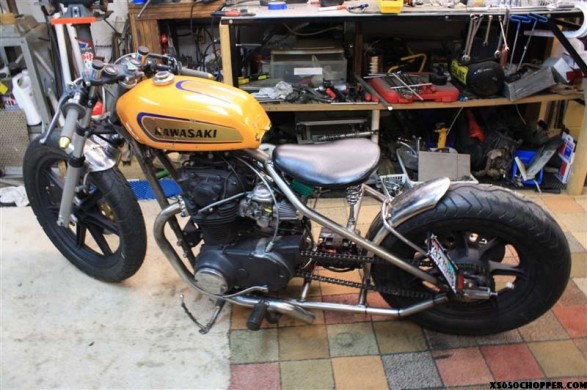

I started out with a Kawi F7 tank and it’s off now. i have to relocate the petcock so the tank will sit down on the frame better- or i may run the CRF 150R tank for a while. it is kinda wicked looking what with all the angles going every whichaway.
i’ll wrap the pipes as soon as the material arrives…

It’s basically done. i’ll do little things here and there til i break something or go backwards…

mookie

Comments

  1. REEB! says:

    What did u run for mids? The almost look like Ardcore. …..or did u make them?

  2. Blackwidow says:

    she’s looking good so far

  3. bykerbrad says:

    That thing looks pretty gnar! That’s pretty cool that the fenders are stainless.

  4. keith montgomery says:

    pegs and hangers are from a cb 500. i had to add a piece and make the mounting plate longer is all.

  5. BMell says:

    With the TC Bros weld on hard tail what size chain did you go with?

  6. mookie says:

    std.530

  7. Greg says:

    Your wheels look a little wider than stock. What size tires are you running, front and rear?

  8. ritzkraker says:

    i dont know man … i like it with the kawasaki tank … if your not gonna use it … im taking donations =o)

  9. keith montgomery says:

    110/90 F
    150/80 R

  10. Greg says:

    Thanks Keith! They look wicked on the factory halos man! Not sure if I can go so wide at the rear cause I’m keeping the shocks, but you’ve got a good eye there.

  11. mookie says:

    Thanks for the kind words. i’m havin’ a blast with this whole scene!

  12. norm younger says:

    the kawasaki tank looked a lot cleaner

  13. fanoboss says:

    this is a cool bike mookie !
