Udo Sacher – German Bobber

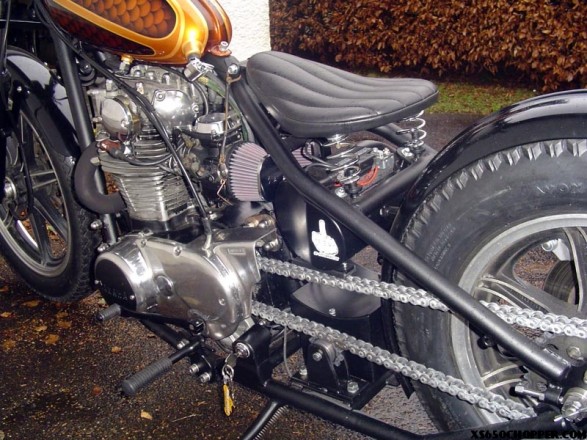

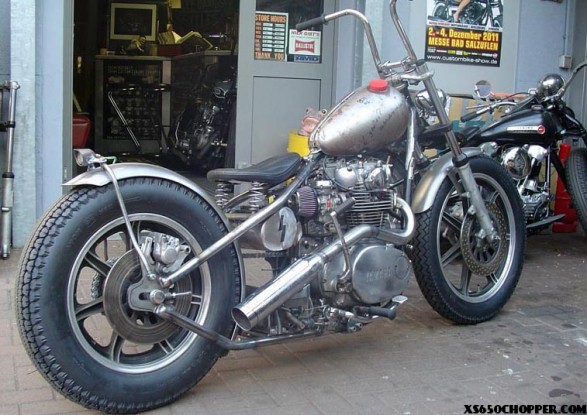

Udo Sacher from Germany sent in pics of his badass XS650 “NO NAME” back in 12 2009. Here are some pictures of his second xs650 he just finished… Udo built this xs for a guy out of Ulm Germany. The bike took him about 4 months to finish – working on it every couple of days. The Handlebars, battbox, fender and struts as well as the foot peg were all custom-built for the bike.

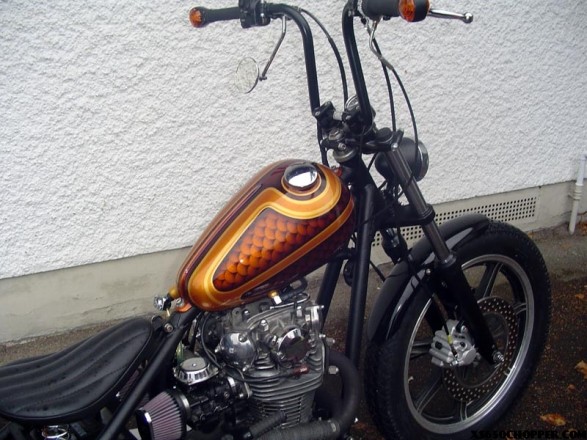

The soloseat is from Easyriders Japan, the Fuel tank is Axed Style for from CCI with a lower tunnel and the was reworked to fit.

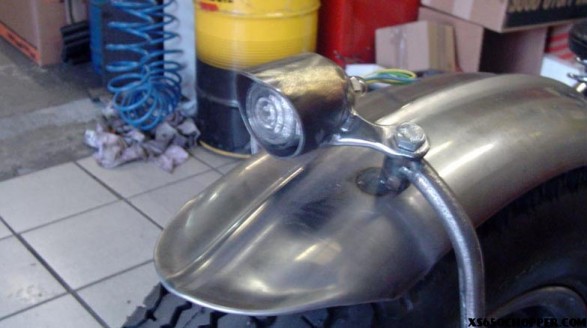

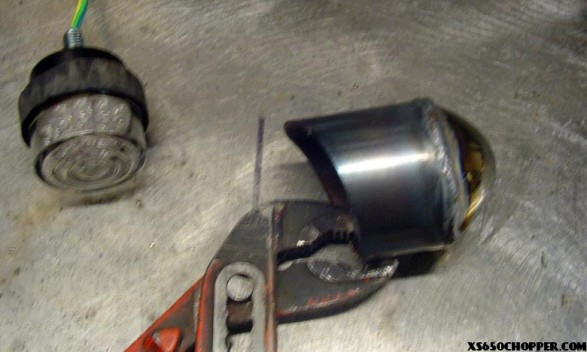

The Taillight is a custom one off Handmade piece (see pictures) with a steel body and LED insert light.

The front sports a 19″ Avon MKII tire and rear 16″ Avon MKII (nice tires for a bobber) on OE Wheels.

The bike runs a Boyer Ignition and OE-Charging System with Custom Wiring by “Mag” (Udo’s friend from Boston/USA)

And the Exhaust System is a 2 into 1 System with a Muffler from a Harley Slash cut and Baffle inside.

If you haven’t already check out “NO NAME”.

Comments

  1. idaho chad says:

    Very nice! I love the paint, but who painted it?

  2. fanoboss says:

    Nice stylin’

  3. hooversama says:

    FRIGGIN AWESOME!

  4. Kaveeks says:

    Sweet tank!!

  5. pickles says:

    Daaaaaaaaaamn! That tank is unreal!

  6. Guy says:

    YEAH…NICE.

  7. Josh says:

    I wanna hear it run! Great job Udo!!

  8. Ted Hewitt says:

    Looks real good nice job I like the tank. and the lights on the bars.

  9. DENNI$ says:

    Wow……. those are two VERY high quality scoots!!

  10. El Gaucho says:

    Not the biggest fan of the bars, BUT, the rest of the bike is so darn awesome I can over look the apes! The exhaust is great, original, and just looks so RIGHT!

  11. misfitskinny says:

    Very! excellent build my freind !! Love the bars, paint, exhaust and that taillight is slick man!!

  12. mike lytle says:

    well I’m a little late on my opinion of the bike, as most of the gearheads have already had their way with you……..but i must agree with them on the trick things you have done…….rear light…nice handlebar lights…….very nice electrical box…….. very nice paint job……..rockin actually the bike as a whole……..OUTSTANDING thanks for sharing

  13. Tables says:

    Really lovin’ the whole bike, the tank really rocks and it is nice to see a front guard that just looks right. Enjoy your riding.

  14. Chuck Jones says:

    Sick build not a big fan of the handlebars on this one.

  15. Tommy Gunnz says:

    Now that is sick.

  16. Barney says:

    Paint is awesome, bike looks very solid. I prefer “No Name” of the two.

  17. Michel says:

    Thanks for the nice words about the paint job.
    This was my second try with candy paint over a metallic/metal flake base.
    It was fun to do.

  18. chris says:

    like the way you mounted that rear caliper you have a better picture of the tab and hardware. looks great overall

  19. reynoldburton says:

    really nice work! There are some minor things that I would change, but thats just personal preference. In my opinion the bars, the signal lights (Ochsenaugen) & the exhaust could be changed.
    Exhaust reminds me of a fire extinguisher Hose 🙂

  20. Udo S says:

    Hi Chris no better pic from the tab ,it´s OE Yamaha caliber bracket with a tap on the frame he have a lomger hole for the screw.

  21. derpaul says:

    schönes bike. fährte es auf deutschen strassen mit stempel? ich mag den styl und möchte auch was bauen. es muss aber auch den ansprüchen der trachtentruppe genügen 🙂 gruß paul

  22. Udo S says:

    Hi derpaul the Bike is street legal with German TÜV ,clear papers.

  23. VoodooTimm says:

    Love the bike! the paint on your tank is wicked…

  24. Capt_Zoom says:

    Gotta be one of the coolest tank paint jobs ever. I also like what you did with the fender struts and tail light. Very cool.

  25. Jamie says:

    Nice job, love the paint job. What are the actual colour names that you used?

  26. Chuck Jones says:

    Killer bike, The handle bars go nice as well.

  27. Michel says:

    @Voodootimm, Captain_Zoom
    Thanks for liking the paint job. It was the first of this kind for me (at least fish scales)….and it was fun as well
    @Jamie
    The job has a base color of very intensive gold pearl-metallic with a metallic underpaint and a ‘glitter’ layer . actually my painter wanted to throw this paint away and gave it to me. i do not know the exact name of the colors. but the base looked already awesome and sparkled like crazy without overly huge flakes. Scales were done with base coat black, already thinned down with 1K clear to use it with a fine airbrush – I could have used water based colors as well.
    The brown tone is achieved with House of Kolor Root Beer Kandy Koncentrate, with which i tinted 1K clear (colorless binder) in two variations. One for the solid and a very light tone for the brigther parts. This way i can control the opacity in the lighter sections a little better.
    Udo and I wanted to do this kind of combination for quite some time and the customer gave us free reign in terms of color.
    Hope that helped.

  28. Paul Masareth says:

    dope lookin bike…likin the all black look w/ the tank to give it a nice contrast! i’ve been trying to find a front fender like that one, is that custom made?
